Drilling Rigs » Water well drilling rigs » INWELL 100

Brief description:

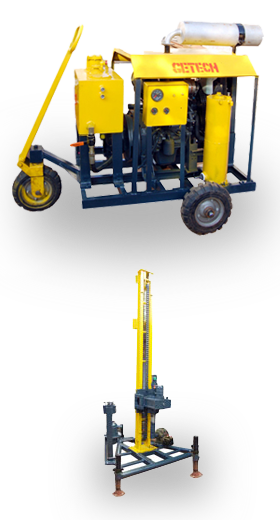

The INWELL100 hydraulically operated drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The INWELL100 rig’s flexibility means it will be five piece construction (Mast, Tripod, Drill head, Feed gearbox and Power pack) and air compressor will be mounted on separate trolley or truck

Optional: Skid mounting

Key features:

  • Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves

Key specification:

  • Drill rod handling 5 feet (1.5meter)
  • Drilling depth up to 330 feet (100 meters)
  • Drilling diameter 4.5 inch (114mm) -5 inch (127mm)
  • Pull up force 2500 kgf-3000 kgf
  • Drill head torque 80 kg.m
  • Air compressor 450 cfm/150 psi

Optional: Trolley mounted mud pump driven by diesel engine through mechanical drive for mud rotary drilling.


Inwell 100
