Drilling Rigs » Water well drilling rigs » DTHR600

Brief description:

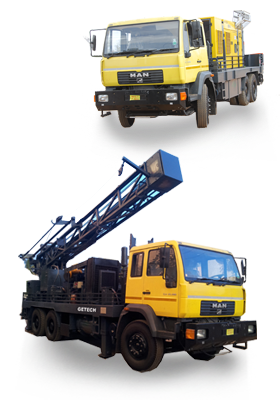

The DTHR600 drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The DTHR600 rig’s flexibility means it can be mounted on two truck versions and on local trucks matching the rig to the terrain it will be used. Can be used for both DTH and mud rotary drilling

Optional: Skid mounting

Key features:

  • Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves

Key specification:

  • Drill rod handling 15 feet (4.5 meter) -20 feet (6.0 meter)
  • Drilling depth up to 2,000 feet (600 meters)
  • Drilling diameter 6.5 inch (165mm) - 16.0 inch (407mm)
  • Pull up force 22,000 kgf
  • Drill head torque 600 kg.m (optional: 720 kg.m)
  • Air compressor 1,200 cfm/320 psi
  • Mud pump flow 1,000 lpm-1,600 lpm
DTHR 600
