Drilling Rigs » Under ground drilling rigs » SMDR100

Brief description:

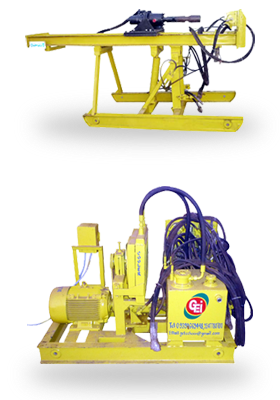

The SMDR100 is hydraulically operated drill rig is ideal for underground drain holes etc. drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The SMDR100 rig’s flexibility means it will be two piece construction (Rig assembly, and Power pack).

Key features:

  • Proven technology ensures easy maintenance and more productive.
  • The rig can be customize as per customer requirement
  • All the actuators are operated by proportional control valves
  • Hydraulic pump driven by Electrical motor

Key specification:

  • Drill rod handling 5.0 feet (1.5 meter)
  • Drilling depth up to 330 feet (100 meter)
  • Drilling diameter 4.5 inch (114 mm)
  • Pull up load 2,500 kgf.
  • Drill head torque 80 kg.m
  • Contact us for diesel engine drive.
smdr100
